Unplug bidet before serving.
-
Do not use water to clean charcoal filter.
-
Clean bidet once a month.
-
If effectiveness decreases, clean the filter.
-
Click to enlarge pictures
-
Use back button to return to graphic page.
|
 |
- Clean the seat, lid and body
- Wipe them with a damp cloth to remove dust
- Then use a detergent dampened cloth to sanitize them
- Dry off the detergent with a dry cloth
|
 |
- If spray nozzle is stained
- Pull it forward and clean gently with a tooth brush
- Use a mild detergent
|
 |
- Cleaning the Deodorizer
- Remove filter by pulling filter handle
- Use vacuum to clean debris from the charcoal filter
- Use a toothbrush to clean air intake ports on underside of main body
|
 |
- Same as above (Cleaning the Deodorizer)
|
 |
- Bottom of Main Body
- Clean Air Intake Ports
|
Click to Enlarge |

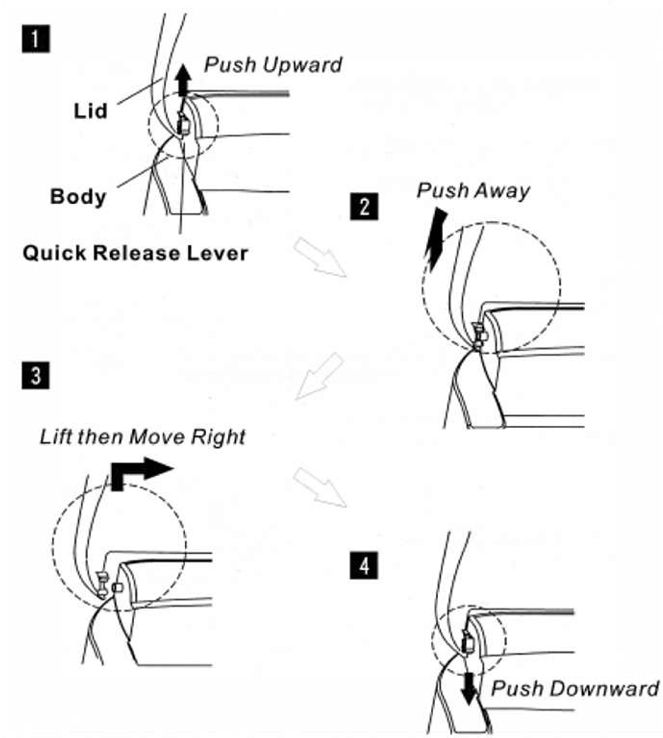

Removal of lid for cleaning:
- While lid is in the up position, push up on the quick release lever.
- Push lid away from post.
- Push lid assembly to the right.
- Reverse to reinstall.
|
Click to Enlarge |

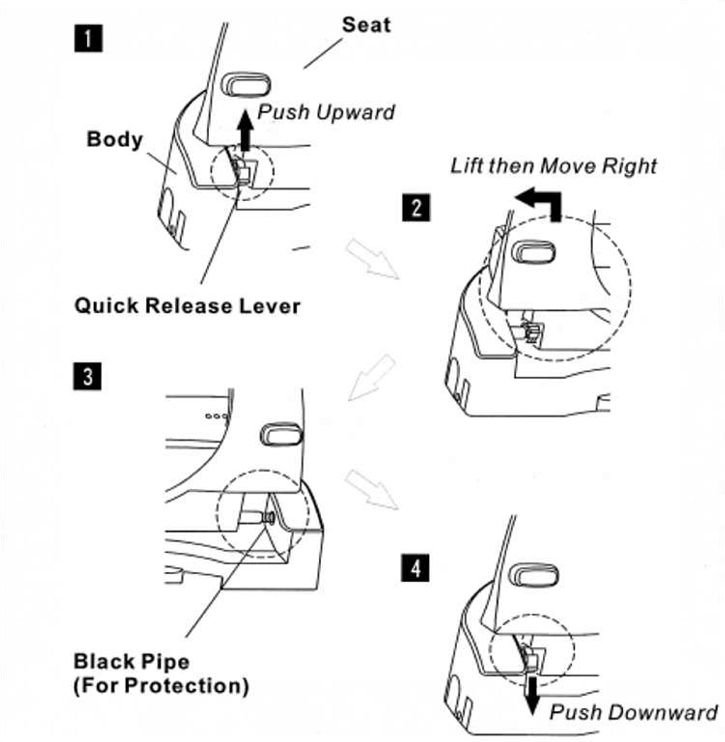

Removal of seat rim for cleaning:
- While seat rim is up, push up in the quick release lever.
- Lift seat away from main body.
- Swivel seat rim away fr0om the main body to gain access for cleaning. Be sure not to pull on the wire running into the seat.
- Reverse instructions to reinstall.
|
Click to Enlarge |
Remove of filter for cleaning -- enlarge graphic for specific instructions. |
Click to Enlarge |

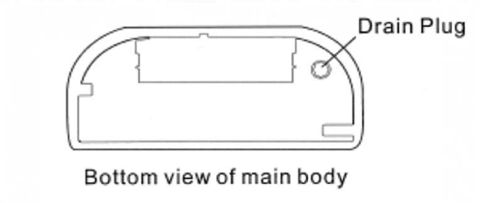

Procedure for draining u8nused bidet seats (2 months or more)
- Option 1 (Note: Power must be on) -- Push the Back Wash button and cover the black window by the power light to trip the occupied seat sensor. Allow the nozzle to spray. It will take about one minute to drain the old water (Note: the system will automatically refill itself as the water sprays).
- Option 2 (Note: Unplug the power and close the shot off valve) -- Remove the drain plug on the bottom of the main body to drain. When water is completely drained, replace the drain plug.
|
